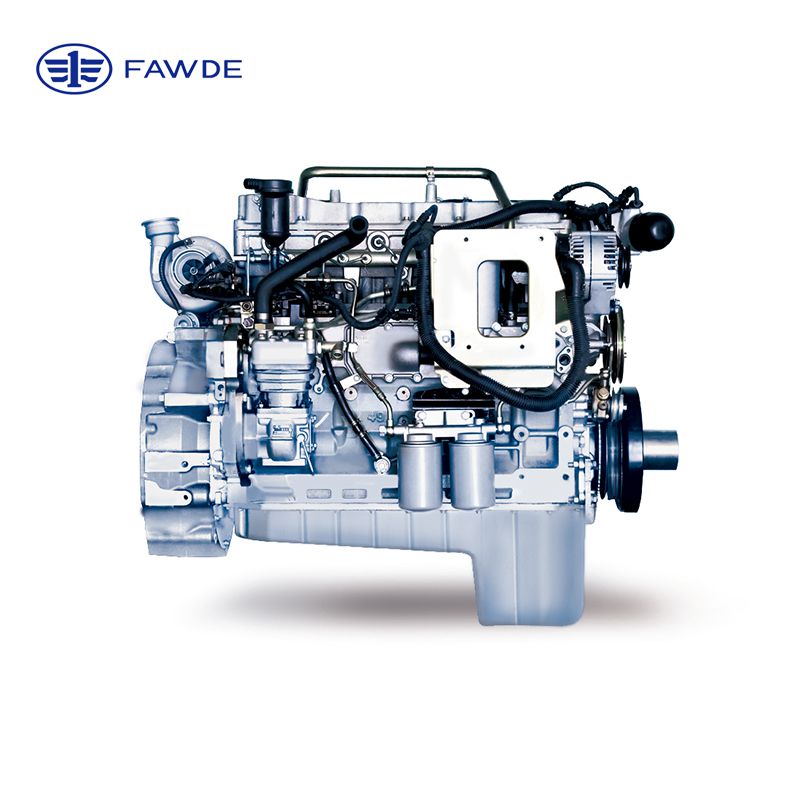

Electronic Common Rail - China V - 6DH1

Inquiry Now

Specifications

（Engine Model）	6DH1-24E5	6DH1-22E5	6DH1-20E5	6DH1-18E5	6DH1-16E5
Engine Displacement	5.7L
Bore × Stroke(mm )	98×126
Engine Type	In-line 4-cylinder, four-stroke, water-cooled, turbocharged with intercooler
（Valve Train）	Overhead Camshaft (OHC), 4-valve per cylinder
Rated Power / Speed(kW/rpm)	179/2500	165/2500	150/2500	135/2500	121/2500
Maximum Torque / Speed(N·m/rpm )	900/1300-1700	850/1300-1700	850/1300-1700	850/1300-1700	650/1300-1700
Minimum BSFC at Full Load(g/kW·h)	≤207	≤207	≤207	≤207	≤207
Low-speed Torque at 800 rpm（Nm）	600	600	600	600	600
Fuel System	FCRI 2000bar common rail system
Oil to Fuel Consumption Ratio	1 ‰
Noise Level at 1 MeterdB(A)	94
B10 Life(km)	80
Weight(kg)	570
Length × Width × Height（mm）	1062×750×956
