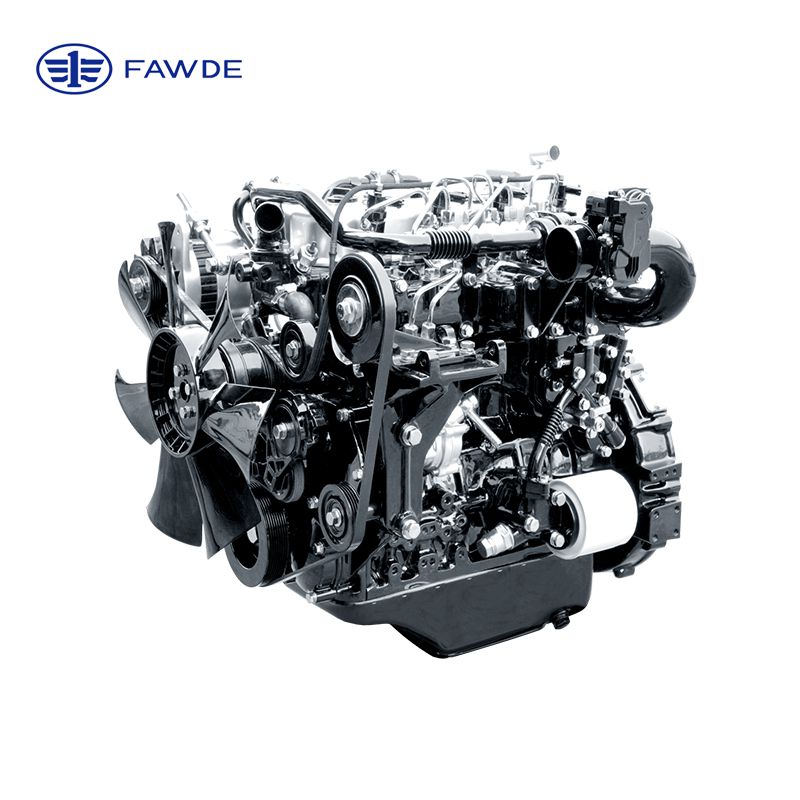

Electronic Common Rail - China V - 4DW

Inquiry Now

Specifications

Engine Model	4DW93-65E5	4DW93-73E5	4DW93-78E5	4DW93-84E5	4DW94-95E5
Engine Displacement	4-cylinder inline, direct injection, turbocharged with intercooler, electronic common rail
Bore × Stroke(mm )	90×100				93×100
Valve Count	2
Total Displacement	2.56L				2.72L
Rated Power / Speed （kW/r/min）	50/3000	56/3000	59/3000	64/3000	72/3000
Net Power / Speed (kW/r/min)	48/3000	54/3000	57/3000	62/3000	74/3000
Maximum Torque / Speed (N·m/r/min)	178/1900-2100	190/1900-2100	200/1900-2100	220/1900-2100	250/1900-2100
Minimum Specific Fuel Consumption at Full Load (g/kW·h)	≤205
Full Load Smoke Opacity (m⁻¹)	≤0.3
Noise dB(A)	≤95.5
Technology Path	BOSCH electronic common rail+EGR+DPF
Dimensions (L × W × H)（mm）	723×643×690
