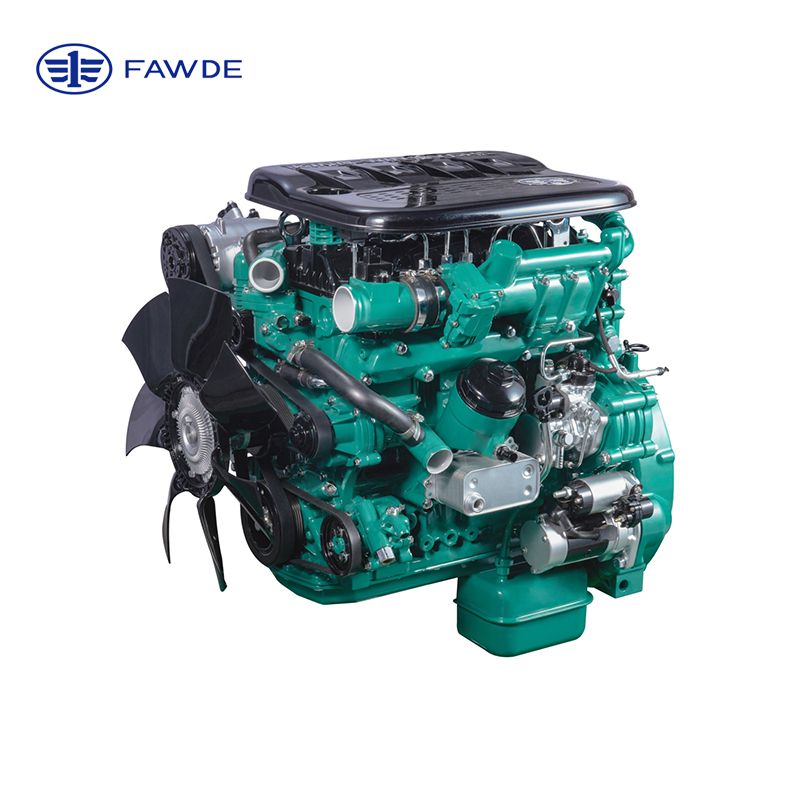

Electronic Common Rail - China V - 4DB1

Inquiry Now

Specifications

Engine Model	CA4DB1-09E5	CA4DB1-10E5	CA4DB1-11E5	CA4DB1-12E5	CA4DB1-13E5
Engine Displacement	2.21
Bore × Stroke(mm )	86×95
Type	In-line 4-cylinder, four-stroke, water-cooled, turbocharged with intercooler
Valve Train	4 valves per cylinder, SOHC (Single Overhead Camshaft)
Compression Ratio	17:1
Maximum allowable explosion pressure（MPa）	16 (with 180 bar potential)
Rated Power / Speed （kW/r/min）	65/3200	70/3200	80/3200	88/3200	95/3200
Maximum Torque / Speed (N·m/r/min)	225/1600-2400	240/1600-2400	290/1600-2400	330/1600-2400	350/1600-2400
Lowest BSFC at Full Load(g/kW·h)	203
Oil to Fuel Consumption Ratio	0.1%
Fuel system	BOSCH 1800bar common rail system
Emission Level	National V (EGR+DOC+DPF) (with National VI potential)
Noise Level at 1 MeterdB(A)	≤94
B10 life(km)	400,000
Weight（kg）	250
