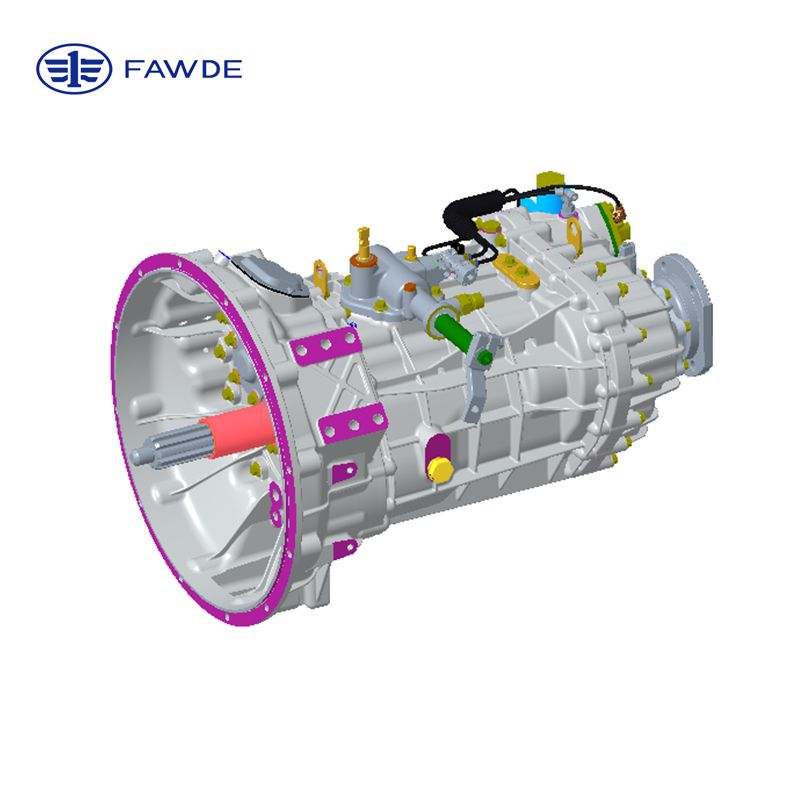

Technical Characteristics
Upgraded Main and Auxiliary Box Structure Design
B10 life of 500,000 km, approximately 200,000 km longer than competing products
Lightweight Design, Weighing Only 159 kg
Front-rear Split All-aluminum Housing Design, Compact Size and Lightweight
Optimized Design for Compact Structure and Higher Torque-to-weight Ratio
High Efficiency and Fuel Economy
Superior Powertrain Matching for Better Performance and Fuel Efficiency
Higher Gears Reduce Engine RPM, Lowering Fuel Consumption
Specifications
| Item | CA10TAX130M1 |
| Input Torque（Nm） | 1300 |
| Center Distance（mm） | 110 (Main Box), 130 (Sub Box) |
| Gear Ratio Range | 14.773（10.976~0.743） |
| Weight（kg） | 159 |
| Installation Length（mm） | 800 |
| Overall Efficiency | 98.8% (directly blocked) |
| Noise Level（dB） | 85.1 |
