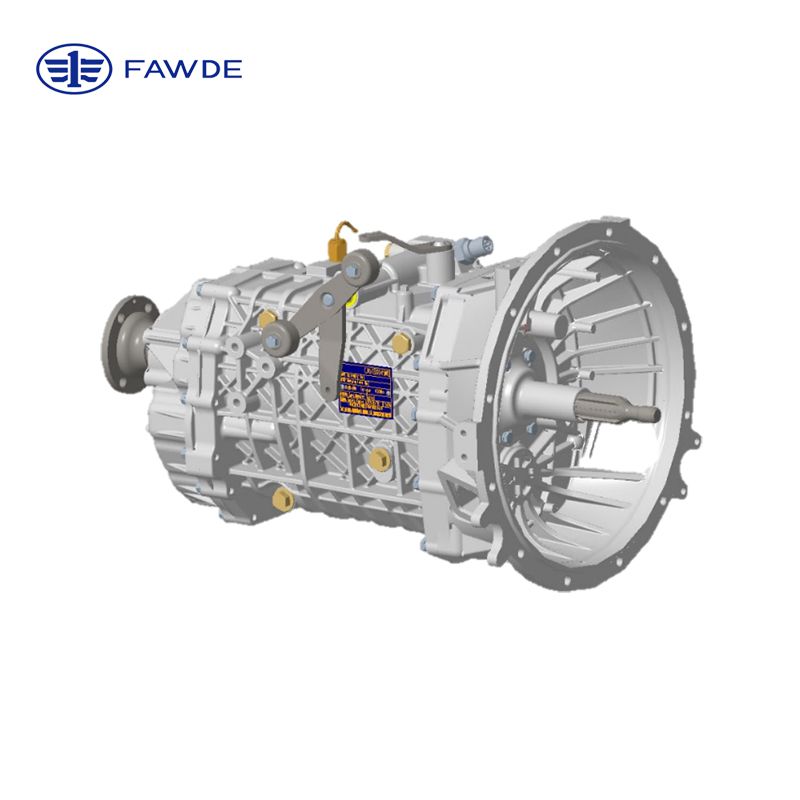

Light-duty 6-speed Transmission

Inquiry Now

Technical Characteristics

High Reliability with Enhanced Load Capacity, Maximum Torque up to 500 Nm

Optimized Shaft and Gear Design for Even Load Distribution, Precise PowerTransmission, and Improved Safety

Improved Shift Performance with Smoother Gear Changes

Upgraded Synchronizer Structure with Optimized Cone Angle and Friction Material, Reducing Resistance

Enhanced Ride Comfort with Maximum Noise Level of 81.5 dB(A)

Improved NVH Performance of the Housing

Lightweight Upgrade: Weighs Only 88 kg, 27 kg Lighter Than Before

Features a Single Countershaft, Front-rear Split Housing Design with All-Aluminum Construction

Specifications

Item	CA6TB045/050M1
Input Torque（Nm）	450/500
Center Distance（mm）	99
Gear Ratio Range	5.975-0.779
Weight（kg）	88
Installation Length（mm）	680.6
Overall Efficiency	94.6
Noise Level（dB）	81.5
