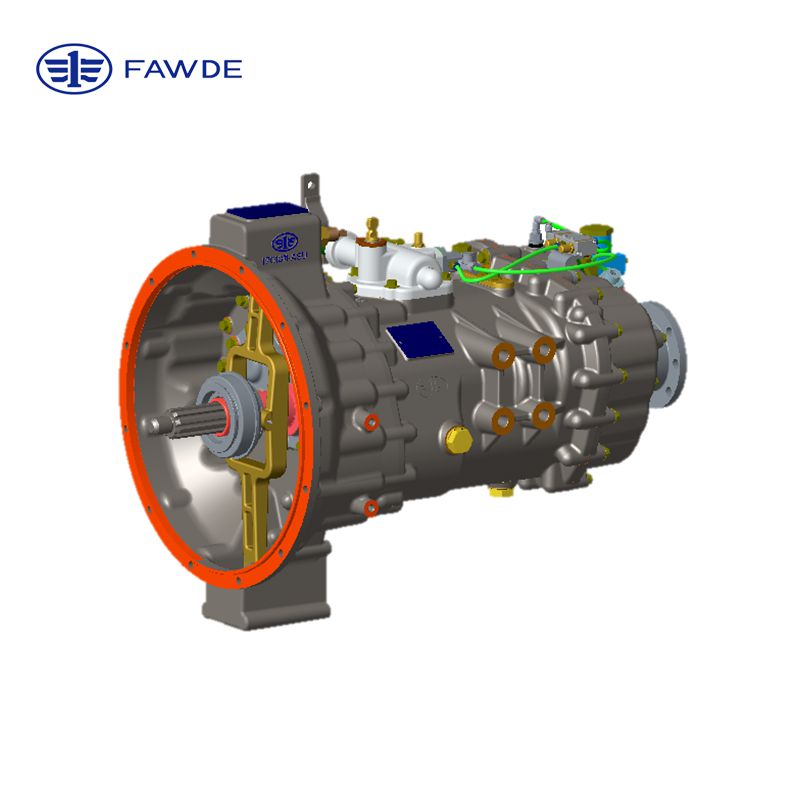

Compact 8-speed and Close-ratio Transmission

Inquiry Now

Technical Characteristics

Long Service Life

B10 life of 500,000 km, with extended oil change interval of 50,000 km

Low Noise

Fine-tooth gear design with gear accuracy grade 8, resulting in lower noise

High Load Capacity

Auxiliary box center distance: 110 mm, maximum torque: 1000–1100 Nm

Lightweight Design

Twin countershaft structure with main and auxiliary gearbox, front-rear split housing

Fuel Efficiency and Economy

FAW engine-transmission-axle efficient powertrain, small step ratio improves overall fuel economy.(Saves approximately ¥2520 per year at an annual mileage of 100,000 km and diesel price of ¥6.3/liter)

Parameter Table

Item	CA8TAX090M	CA8TAX090M1
Input Torque（Nm）	1000	1100
Center Distance（mm）	Main Box ：110；Auxiliary Box ：110
Gear Ratio Range	13.019（9.569~0.735）	9.674（7.323~0.757）
Weight（kg）	185（Bottom Push）/183（Side Push）
Installation Length（mm）	725.3/737.7/755
Overall Efficiency	97.13%
Noise Level（dB）	≤87.48	≤89
