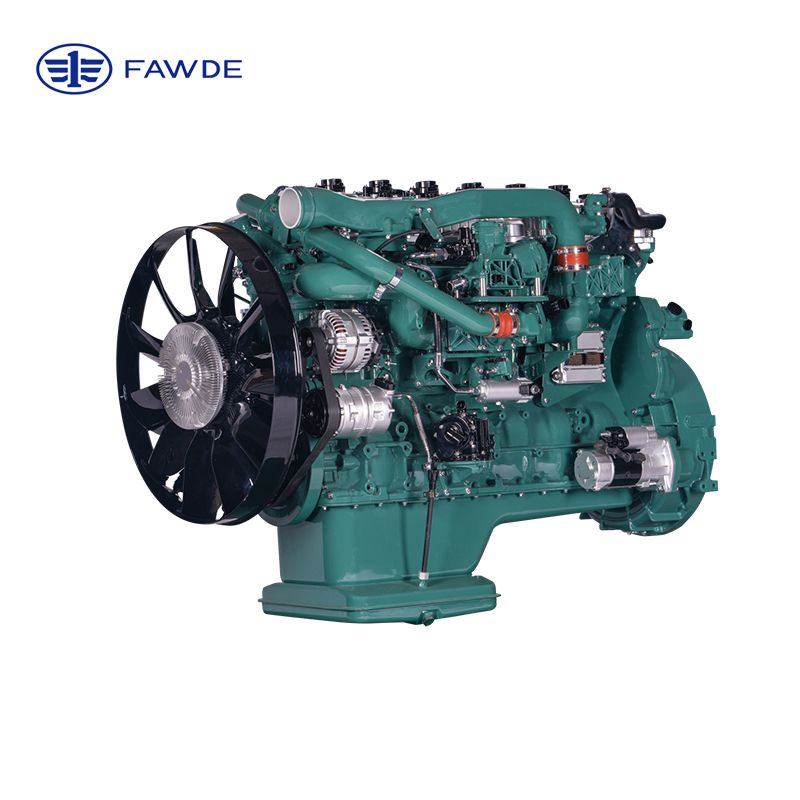

Gas Platform-6SM6

Inquiry Now

Engine Specifications

Platform		CA6SM6-A40E6N	CA6SM6-A42E6N	CA6SM6-A43E6N	CA6SM6-A46E6N
Bore × Stroke	mm	126.5×166
Displacement	L	12.52
Rated Power / Speed	Ps/r/min	406/1900	426/1900	436/1900	466/1900
Maximum Torque / Speed	N·m/r/min	2100/900-1300	2200/1000-1300	2200/1000-1300	2300/1000-1300
Low-speed Torque at 800 rpm（Nm）	N·m	2000	2100	2100	2200
Minimum Specific Gas Consumption	g/kW·h	182 (thermal efficiency 41%)
Noise Level	dB	≤96
Emission line		Stoichiometric combustion+EGR+TWC
B10 Life	10,000 kilometers	120
Overall Dimensions (L × W × H)	mm	1481×915×1280 (without fan)
Net Weight GB	kg	1055
Extended Oil Change Interval	10,000 kilometers	10
