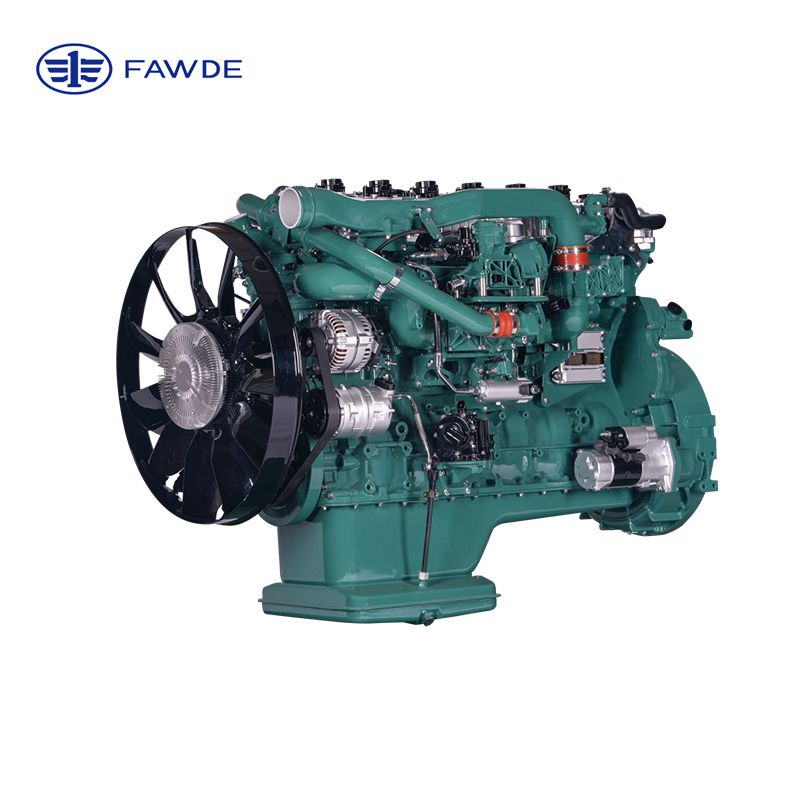

Gas Platform-6SM4

Inquiry Now

Gas Platform-6SM

Platform			CA6SM4A46E61N	CA6SM4-48E61N	CA6SM4B51E61N	CA6SM4-53E61N	CA6SM4-55E61N	CA6SM4-56E61N	CA6SM4-57E61N
Bore × Stroke	mm		130x166
Displacement	L		13.22
Rated Power / Speed	Ps/r/min		460/1800	480/1800	510/1800	530/1800	550/1800	560/1800	570/1800
Maximum Torque / Speed	N·m/r/min		2300/900-1400	2400/900-1400	2500/900-1400	2600/900-1400	2600/900-1400	2600/900-1400	2600/900-1400
Low-speed Torque at 800 rpm（Nm）	N·m		2300
Minimum Specific Gas Consumption	g/kW·h		188
Noise Level	dB		≤93
Emission line			Stoichiometric combustion+EGR+TWC
B10 Life		km	1,000,000
Overall Dimensions (L × W × H)		mm	1481×915×1280 (without fan)
Net Weight GB		kg	1066
Extended Oil Change Interval		km	100,000
