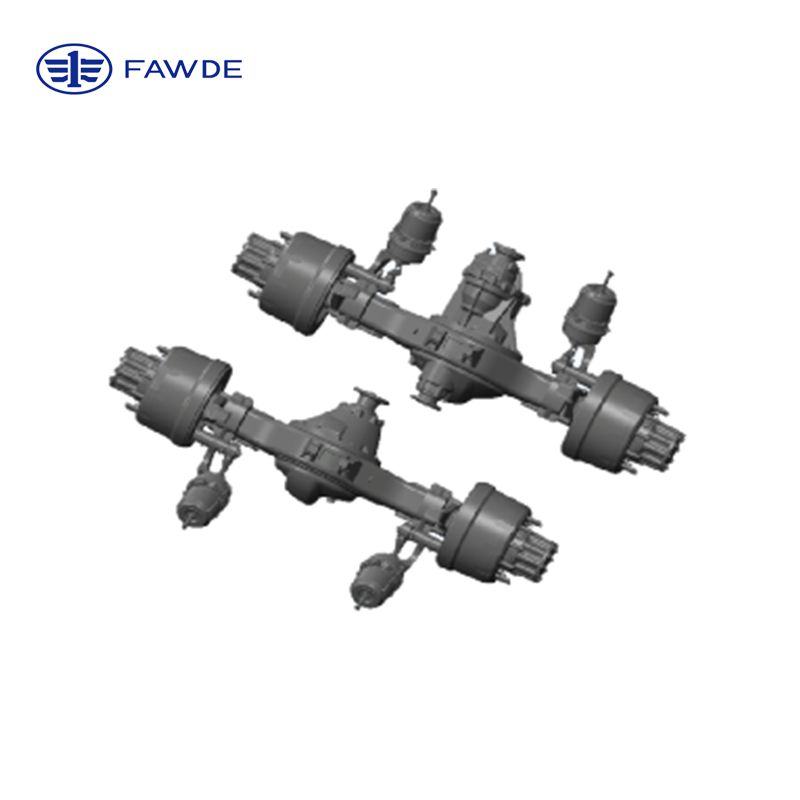

435 Axle

Inquiry Now

Technical Characteristics

More Efficient Power Transmission

1. Advanced gear technology and low-friction solutions improve transmission efficiency by 2%

2. Lightweight Design – 40 kg Lighter, Internationally Leading

3. Integrated supply chain ensures higher consistency across

4. UnitsFuel Efficient – Saves Over 2 Liters per 100 km

Wider Application Range

1. Long Oil Change Interval – Up to 100,000 km

2. Maintenance-Free Options: Selectable hub lubrication (grease or oil), optional Meritor or FAG hub units for 500,000 km or 3-year maintenance-free operation

3. Multiple Configurations Available: Inter-wheel differential lock, wedge brake, airbag suspension, etc.

High Reliability and Durability

1. Long Service Life – B10 Life up to 1,500,000 km with 100,000 km oil change interval

2. High Load Capacity – Rated Load 11.5 TonnesOver 100,000 Units in Market Usage

Improved Ride Comfort

1. Precision Machining: Gears produced using German machining centers and dry-cutting technology, reducing surface roughness and ensuring high gear accuracyLow

2. Noise: Axle housing features low-noise radiation design, reducing noise by 4 dB(A)

Axle Product Parameters

Model	FAW New 435 Axle
Input Torque（Nm）	30000×2
Rated Axle Load（Kg）	11500Kg×2
Gear Ratio Range	3.545-6.166
Brake Specifications（mm）	φ400×200
Axle Housing Type	Stamping and Welding
Track Width（mm）	1830-1878
Axle Housing Section（mm）	145×158×14
