Technical Characteristics
Long Service Life Design, B10 Life Increased by 33%
Cast/Internal Expansion Axle Housing, Load Capacity Increased by 13%
Rich Brake Configuration Options
Low Friction Loss, Improved Transmission Efficiency
Higher Torque Capacity, Transmission Torque Capability Enhanced by 39%
Versatile Hub Configurations
Versatile Hub Configurations

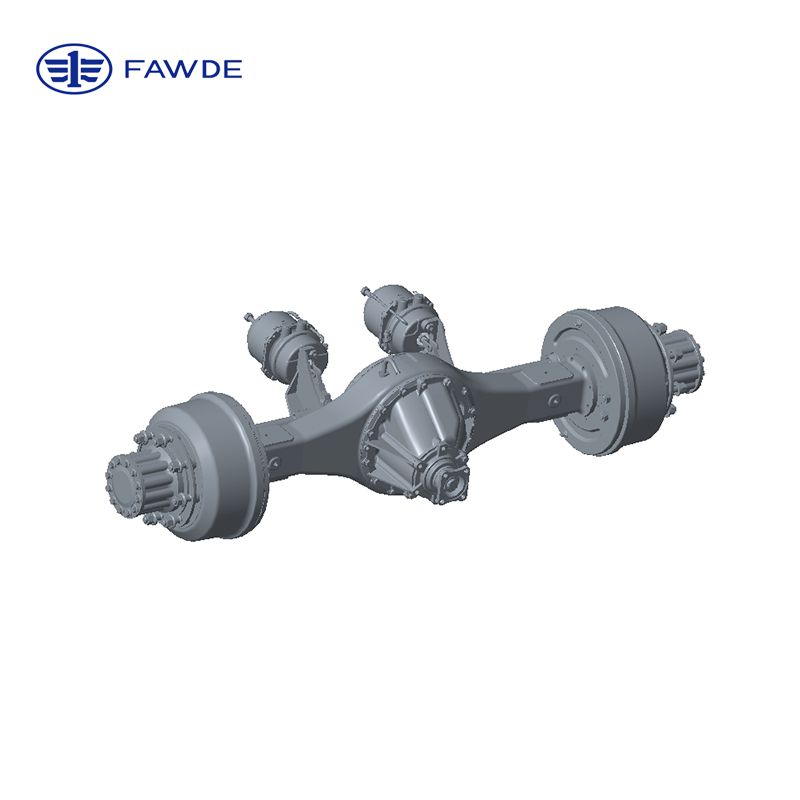

| Model | FAW New 378 Axle |
| Input Torque（Nm） | 25000 |
| Rated Axle Load（Kg） | 9000 |
| Gear Ratio Range | 3.9~6.5 |
| Brake Specifications（mm） | 400x150、400x185 |
| B10 life（km） | 800,000 |
| Track Width（mm） | 1860 |
| Axle Housing Section（mm） | 140x112 |
