Technical Characteristics
High Reliability
High Torque: Output Torque up to 13,000 Nm
Lightweight: Extreme lightweight design, meeting the requirements of 521 heavy-duty yellow license applications
Reliability: B10 life of drivetrain up to 500,000 km, axle housing up to 800,000 km
Versatile Configuration
Axle Load: 6T Axle Load Configuration
Torque: Suitable for Torque Requirements from 10,000 Nm to 13,000 Nm
Maintenance-Free Wheel End: Optional SKF Maintenance-Free Wheel End
Disc Brake: Optional Disc Brake Configuration

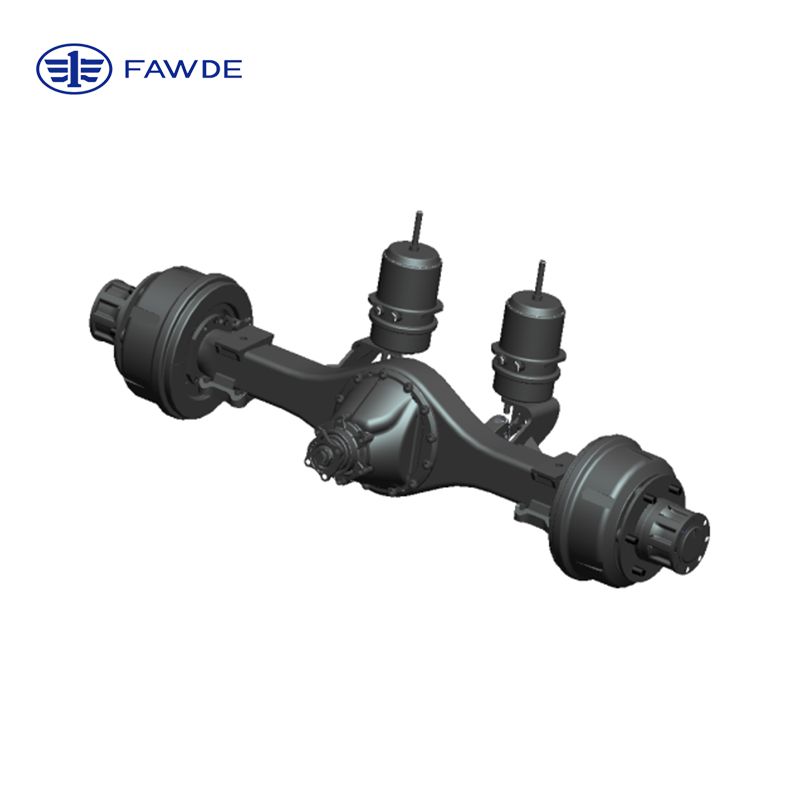

Axle Product Parameters
| Model | FAW New 325 Axle |
| Input Torque(Nm) | 13000 |
| Rated Axle Load(Kg) | 6T |
| Gear Ratio Range | 3.25-5.125 |
| Brake Specifications(mm) | 320x130 |
| B10 life(km) | 500,000 |
| Track Width(mm) | 1740 |
| Axle Housing Section(mm) | 116x122x8 |
Globally Leading Intelligent Power Solutions
We have delivered over 280,000 high-performance engines to 67 countries and regions worldwide. Explore intelligent manufacturing and reliable power to create greater value for your business.
