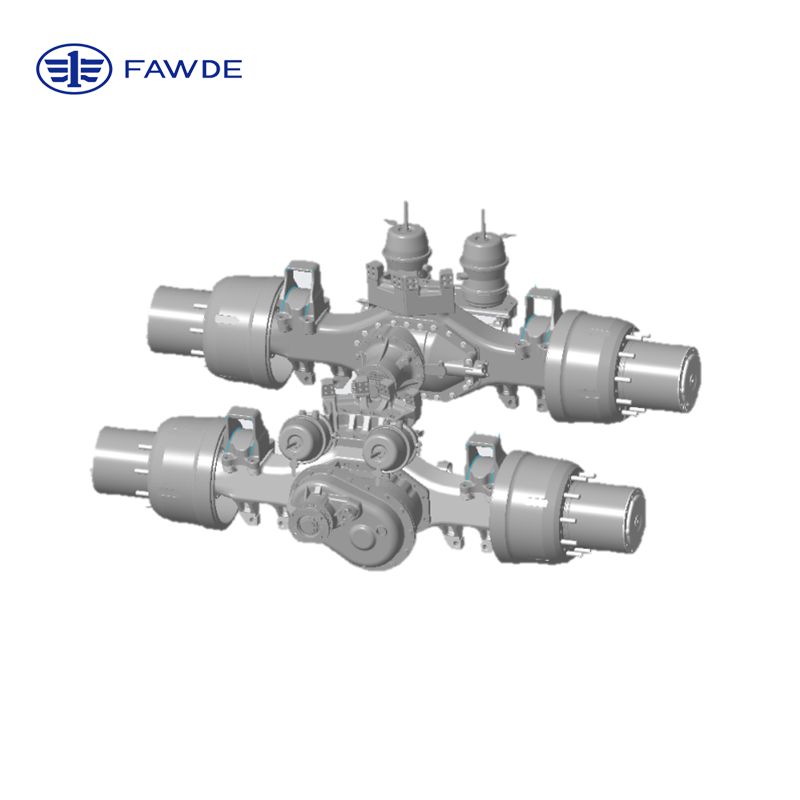

300 Drive Axle

Inquiry Now

Technical Characteristics

High Load

Optional Integrated Cast Iron Axle Housing (Section 180×156) and Reinforced Cast Steel Axle Housing (Section 190×160)

3x Load Capacity, Passed 1 Million Cycles in Bench Testing

High Reliability

Integrated Reducer Housing, Upgraded Open-Type Axle Differential Structure

Φ410×220 Brake, Auto Adjuster Arm, ABS Standard Equipped

High Output Capability

Full-Floating Half Shaft Design

Bevel Gear with Equal Tooth Height Design, Integral Axle Differential Housing

Wheel Reduction Ring Gear and Sun Gear with Dual Floating Design for Even Load Distribution

Excellent Terrainability

Equipped with Wheel-end Reduction Mechanism, Large Ground Clearance, Significantly Improving Vehicle Off-road Capability, Ensuring Reliable Performance in Harsh Conditions such as Mountainous and Mining Areas

Axle Product Parameters

Model	FAW New 300 Axle
Maximum Torque（Nm）	2*60000
Rated Axle Load（kg）	160000
Track Width（mm）	1878
Axle Type	Cast Steel, Cast Iron, Internal Expansion Brake
Gear Ratio Range	3.896/4.805/5.263/5.921/6.733
Weight（kg）
Brake Specifications（mm）	Φ410*220
