Technical Characteristics
High Reliability
High Torque: Output Torque up to 10,000 Nm
Lightweight: Extreme lightweight design, meeting the requirements of 521 heavy-duty blue license applications
Reliability: B10 life of drivetrain up to 500,000 km
Versatile Configuration
Axle Load: 4T&5T Axle Load Configuration
Torque: Suitable for Torque Requirements from 7,000 Nm to 10,000 Nm
Maintenance-Free Wheel End: Optional SKF Maintenance-Free Wheel End
Disc Brake: Optional Disc Brake Configuration

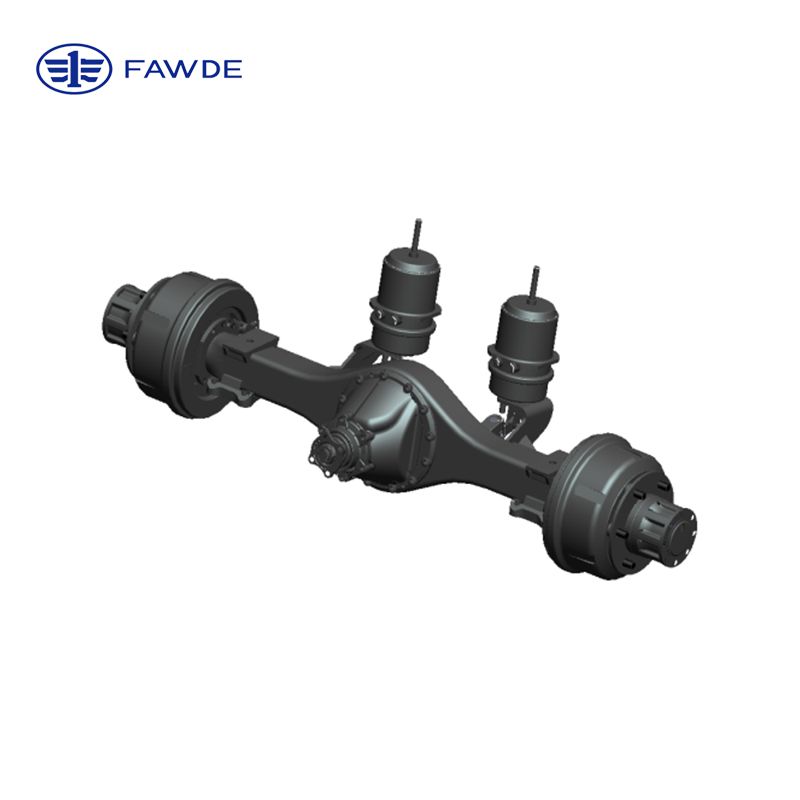

Axle Product Parameters
| Model | 295 Axle | 295 Extented Axle |
| Input Torque（Nm） | 10000 | |
| Rated Axle Load（Kg） | 4000 | 5000 |
| Gear Ratio Range | 4.3-5.125 | |
| Brake Specifications（mm） | 320x100 | 320x130 |
| B10 life（km） | 50 | |
| Track Width（mm） | 1565/1740 | 1678/1740 |
| Axle Housing Section（mm） | 106x106x6 | 110x110x6 |
Globally Leading Intelligent Power Solutions
We have delivered over 280,000 high-performance engines to 67 countries and regions worldwide. Explore intelligent manufacturing and reliable power to create greater value for your business.
