Technical Characteristics
High Reliability
High Torque: Output Torque up to 7,000 Nm
Lightweight: Extreme lightweight design, meeting the requirements of 521 heavy-duty blue license applications
Reliability: B10 life of drivetrain up to 500,000 km
Versatile Configuration
Axle Load: 3.5T Axle Load Configuration
Torque: Suitable for Torque Requirements under 7,000 Nm
Maintenance-Free Wheel End: Optional SKF Maintenance-Free Wheel End
Disc Brake: Optional Disc Brake Configuration
Axle Product Parameters

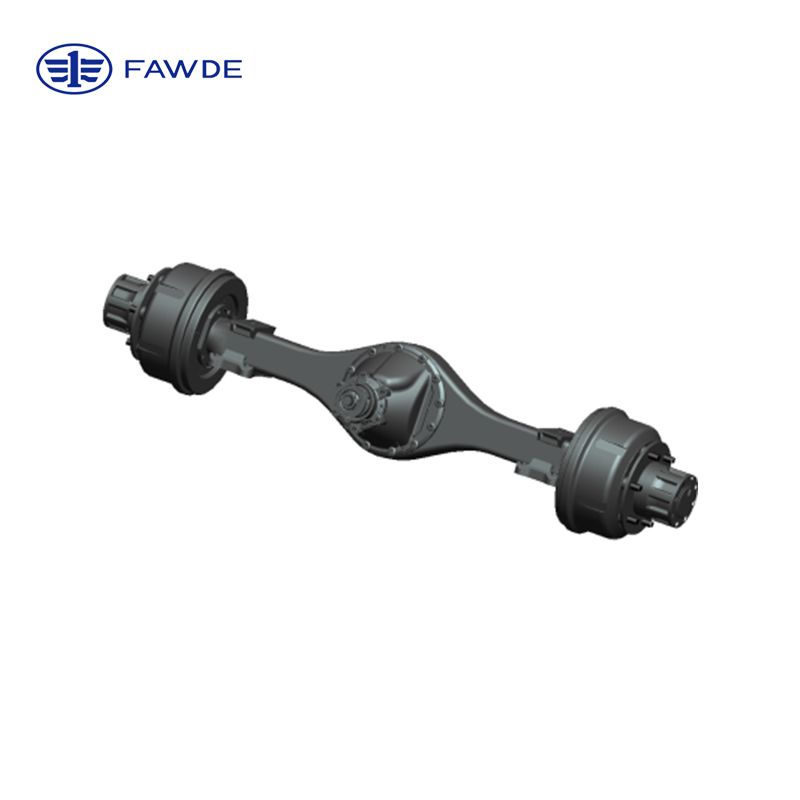

| Model | FAW New 265 Axle |
| Input Torque（Nm） | 7000Nm |
| Rated Axle Load（Kg） | 3500 |
| Gear Ratio Range | 4.875-5.125 |
| Brake Specifications（mm） | Gas 320x100 Liquid 320x85 |
| B10 life（km） | 80 |
| Track Width（mm） | 1480 |
| Axle Housing Section（mm） | 96x96x6 |
